Basic Info
Model NO.
6YY-230B
Structure
Vertical
Press Series
Hydraulic Press
Voltage
220V/380V
Model
6yy-230b
Capacity
9.5 Kg/Batch
Batch Working Time
8-15 Minutes
Capacity Per Hour
18-45 Kg/H
Working Pressure
60MPa
Power
1.1/2.2kw
Transport Package
Wooden Case Package
Specification
670*950*1560mm
HS Code
8479200000
Production Capacity
1000 Sets/Month
Packaging & Delivery
Package Size
110.00cm * 97.00cm * 175.00cm
Package Gross Weight
1050.000kg

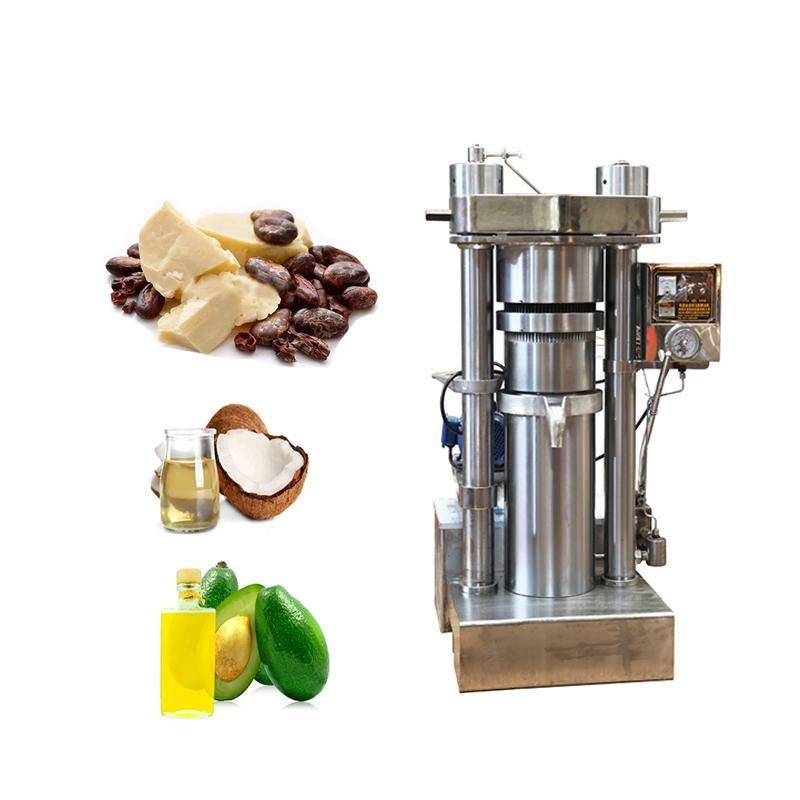

Product Description

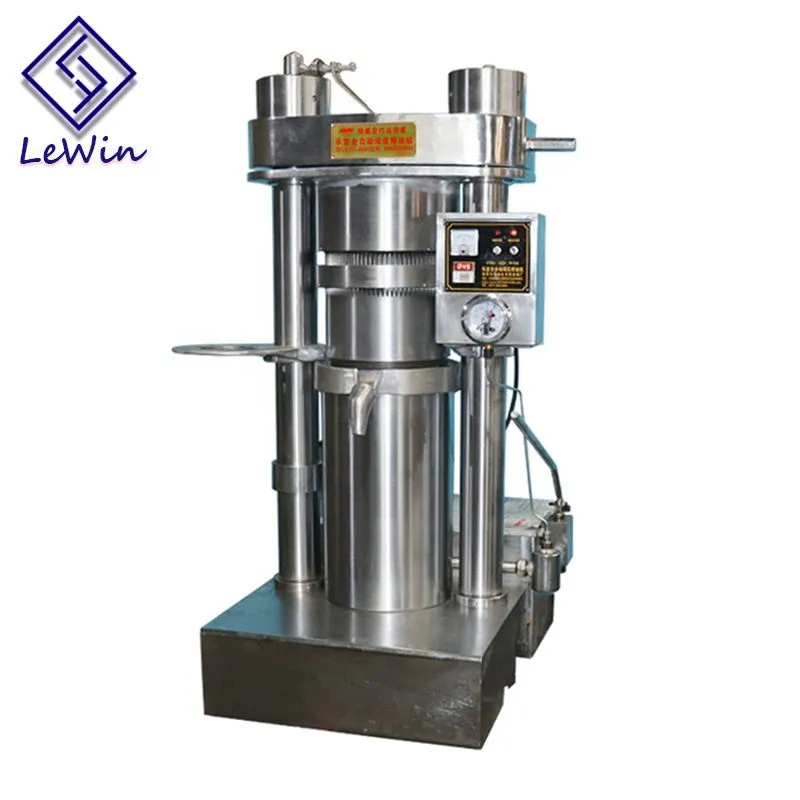

automatic cocoa butter oil making machine chestnut coconut canola oil presser flaxseed walnut oil extraction machine oil processing machine
This hydraulic oil presser use physical hydraulic method to press oil raw material, like rapeseed, sesame, coconut, walnut, chestnut, camellia and etc, to help you get edible oil.
| Parameter table |
| Model |
6YY-185 |
6YY-230A |
6YY-230B |
6YY-250 |
6YY-270 |
6YY-300 |
6YY-335 |
6YY-355 |
| Capacity(kg/batch) |
4 kg |
8.5 |
9.5 |
11 |
13.5 |
16 |
20 |
23 |
| Working time per batch(min) |
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
| Capacity(kg/h) |
12-20 |
25-40 |
27-45 |
22-50 |
26-60 |
30-65 |
40-80 |
46-100 |
| Voltage(V) |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
380 |
| Power(kw) |
1.1/2.2 |
1.1/2.2 |
1.1/2.2 |
1.1/2.2 |
4/2.2 |
4/2.2 |
4/2.2 |
4/3 |
| Size(m) |
0.6*0.88*1.15 |
0.67*0.95*1.46 |
0.67*0.95*1.56 |
0.71*0.95*1.56 |
0.75*1.01*1.64 |
1*1.1*1.66 |
1.1*1.24*1.73 |
1.16*1.2*1.81 |
| Weight(KG) |
590 |
924 |
950 |
1070 |
1230 |
1600 |
1750 |
2350 |
|
There are different can meet your demands, the customization also can be accepted.
|
Raw material:
The oil cake also can be used again:
- Make cakes, snacks, etc.
- As fertilizer to grow vegetables or fertilize flowers.
- As a feed, oil cake is rich in protein, which is the main ingredient of the feed.
small commercial hydrualic oil machine coconut oil processing machine oil extraction press olive cold oil press is suitable for the pressing of various materials: sesame, walnut, chestnut, cashew, pine nuts, baobab seed, cocoa butter, Argan nuts, avocados, olives, grape seeds, camellia seeds, prickly pear seeds etc.
Operation step of hydraulic oil presser:

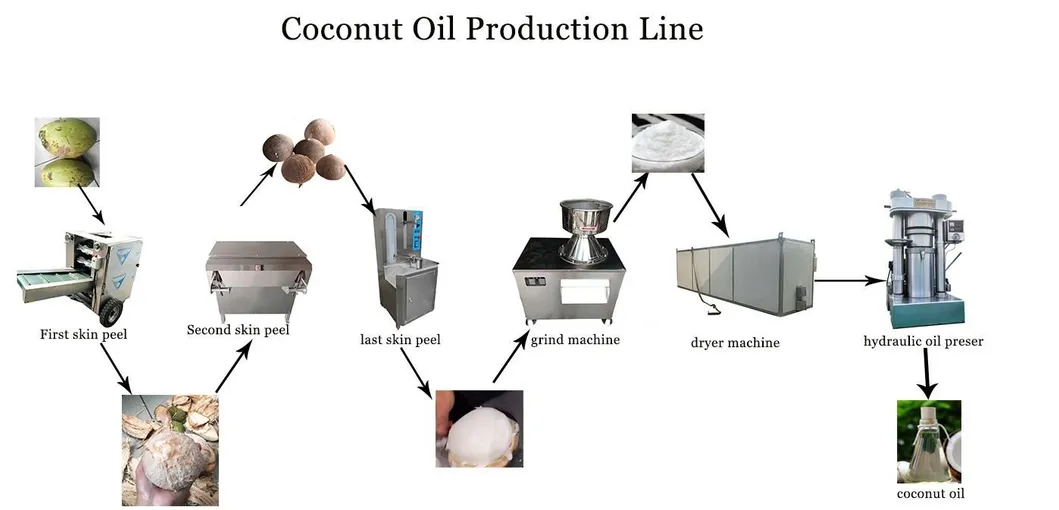

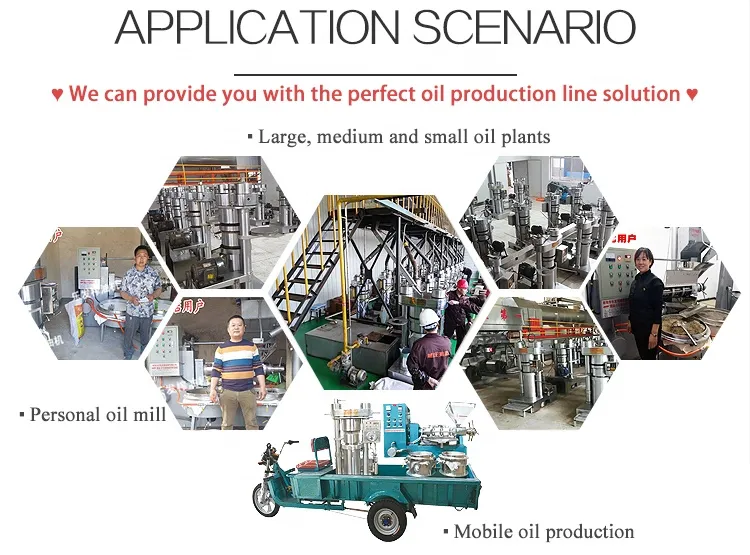

Application:
Our Advantages
Working principle of hydraulic oil press machine:
The Motor offers power to Hydraulic Box to squeeze the kinds of materials up and down in the kettle, through the Control System control the working pressure and temperature, stop working when the pressure over the set point(60mpa) automatically, when the pressure reduces to about 50mpa the machine will work again, this cyclic processing can squeeze materials roundly and improve the oil yield.
Main Features:
Green health & Energy saving & Save labor and long life & High oil recovery
Widely used & Small footprint & Quick cost recovery

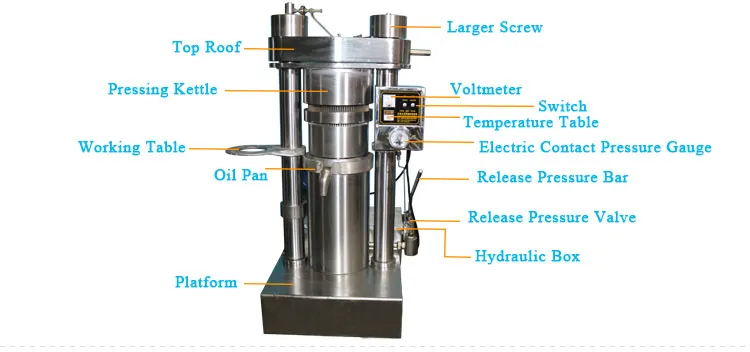

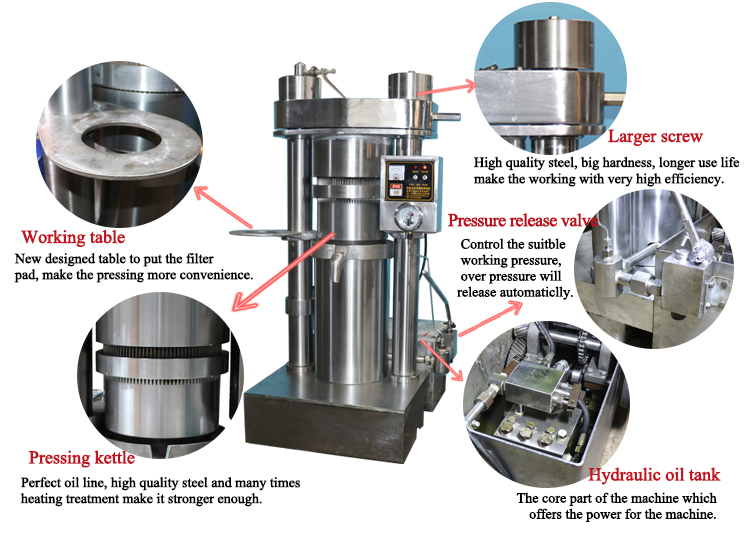

Machine structure:
Brief introduction of Advantage:
- Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
- It has high pressure, max working pressure is 60Mpa, higher than other machine, provide higher oil yield.
- Double pump (high pressure pump and low pressure pump) hydraulic system, the key part of machine. 2 pump hydraulic system can improve work efficiency and improve oil yield.
- The hydraulic system has a safety valve to ensure the safe operation of the machine.
- Oil line is thinner, only 0.36mm, it can filter oil residual directly, final oil can reach to edible oil.
- The hydraulic oil machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 to 15 minutes.
- It can fully cold press, if you have special request of temperature, keep "heating" switch off, temperature will be same as room temperature. More environmentally and economic, easy operation.
Reason of high oil yield:

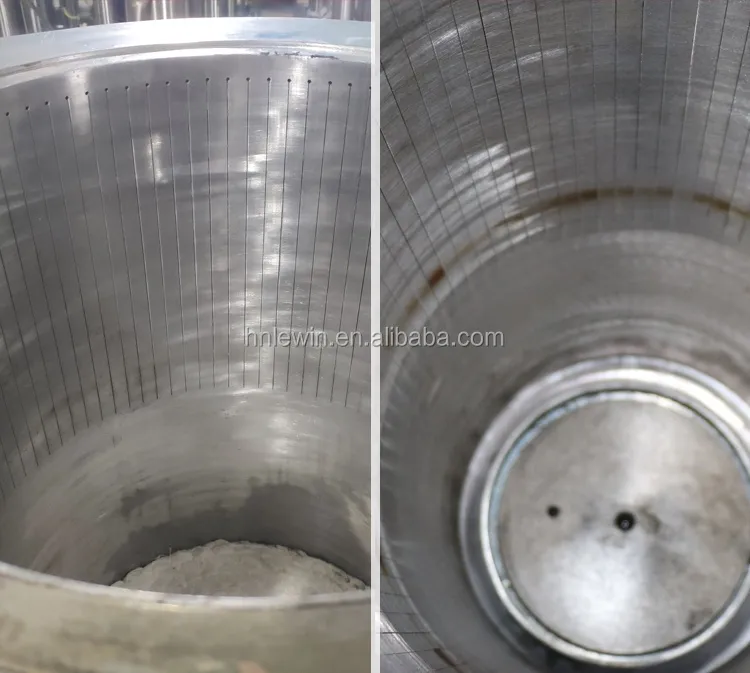

1. Oil line
Precision oil line, only 0.36mm, filtering residue, finally the oil can reach the cooking grade directly, the oil is transparent and edible.
High quality steel and special heat treatment make it strong and safe enough.

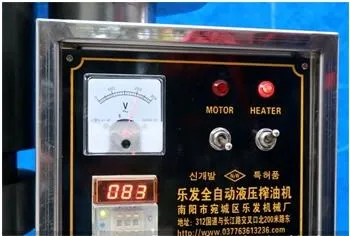

2. Electrical control panel
Internal temperature control parts to solve the problem of low oil performance in winter (normal performance will be lower in winter oil machine).
Only two buttons control all working pressure and temperature, very easy to operate. The buttons were tested very strictly before shipping, make sure they are safe and last for a long time.

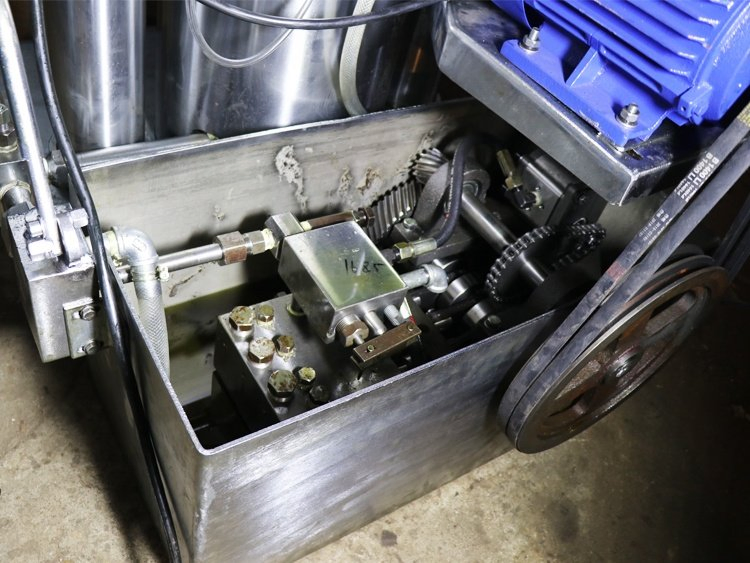

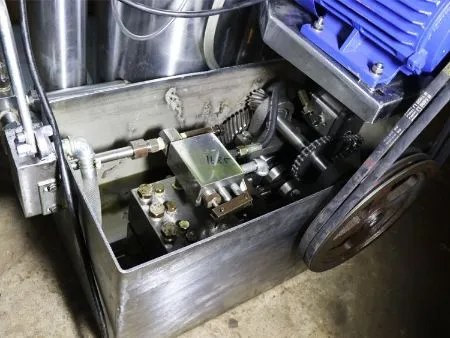

3. Hydraulic system
The hydraulic system is the key part of the machine. It adopts double-pump technology, achieve the high-low pressure exchange, thus improving the working efficiency and oil output rate.

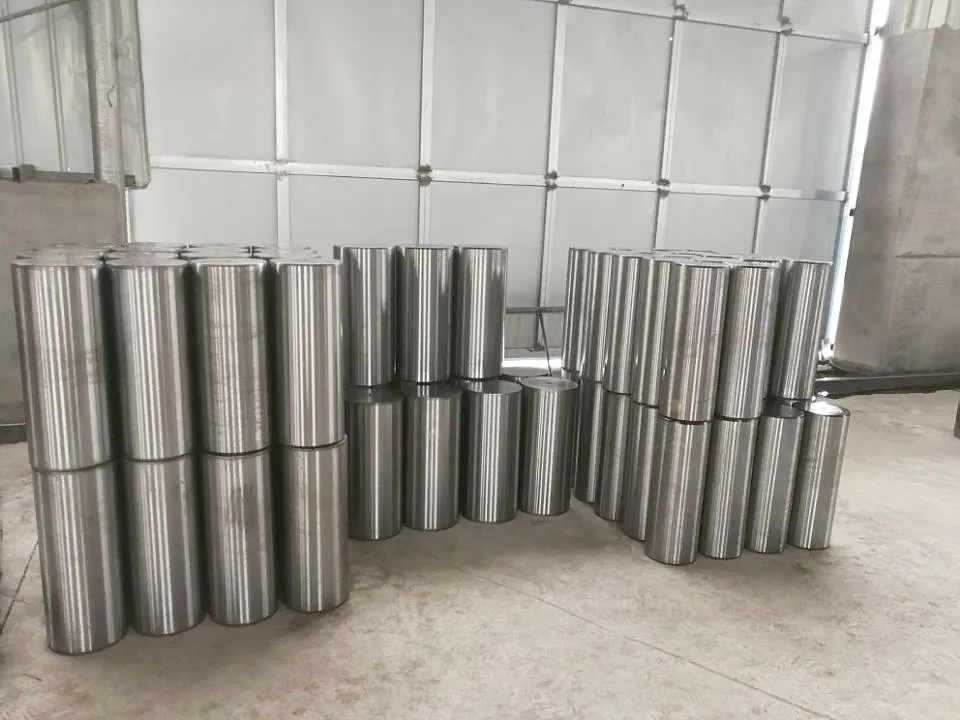

4. Solid piston
Using high quality steel, pressing deeper and cleaner. Repeatedly squeeze the material to increase oil yield.

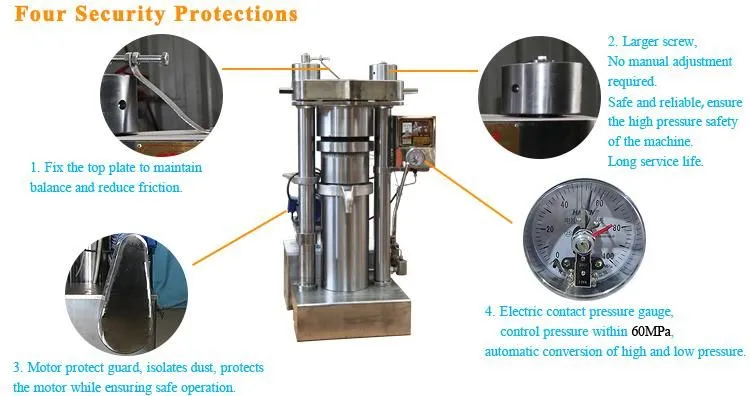

Safety design of the machine:
Our hydraulic oil presser use high quality material and advanced technology, more safety and low maintenance cost.
Service
Pre-sale service
- Offer the professional solution and design drawing.
- Accept the customized model machine
- Accept to visit factory
- Free testing
- Offer professional quotation
- Free consult and technical support
After-sale service
- Online technology support.
- Free video support.
- Free spare parts during the warranty period.
- Field maintenance and repair service (paid)
- VIP price for the coming order.
Packaging & Shipping
We use double films and standard wooden boxes to pack the machine, which can avoid rusting and reduce the tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's requirements.

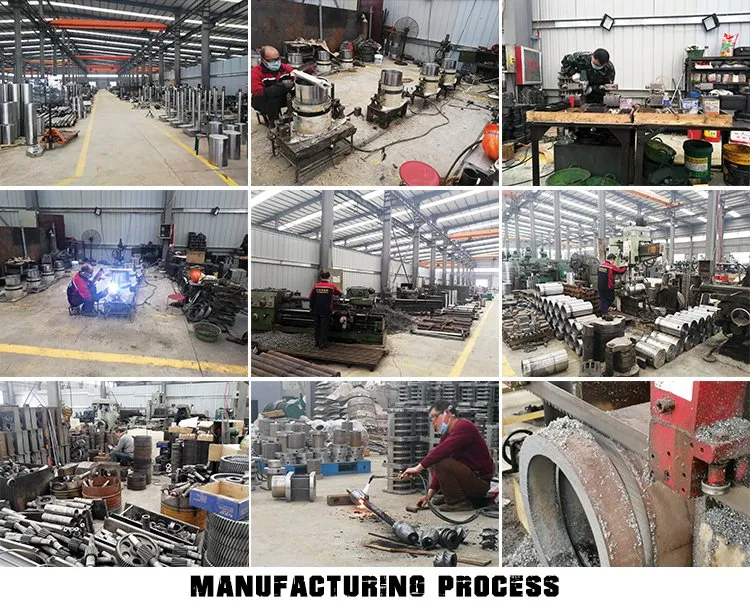

Manufacturing Profile
Since 1998, the manufacturing enterprise is officially registered in China registry. It is the leader in China oil press equipment field. The main products are hydraulic oil press machine, screw oil press machine, accessory equipment for oil press and other equipment. Our company has a professional design R&D team and sales team, supported by the University and guided by the market to update the products, the products have covered the China region with nearly one million users. Our products have been exported to many countries such as the United States, India, South Korea, Russia, Somalia, Ethiopia, Sudan, Algeria, Bulgaria, etc.
FAQ
What the terms of payment you accept?
T/T 50% deposit first, balanced 50% should be paid before delivery.
Do you have stock now?
Yes, we have enough stock to meet your larger orders.
What materials your machine can press?
Our hydraulic oil press machine can press kinds of materials, such as soybean, sesame, cottonseed, walnut, camellia, peanut and so on. We can also test especial materials for you.
Can your machine work at a low temperature?
Yes. Our machine has the heating system to fit for the low temperature, increase oil rate.
How long is your guarantee?
One year guarantee, we supply free exchange for spare parts. After this period, we offer the spare parts with factory price. You will be welcomed to contact us with any problem might occurred.
Can the machine model be customized according to special needs?
Yes, we accept customized model configurations to meet your specific processing demands.
