Utilizes physical squeezing craft to maximally preserve essential nutrients such as proteins, fatty acids, and minerals. Zero chemical solvents or residues left behind.
The optimized spiral squeezing structure achieves high oil output, minimizing oil content in the residue cake. Only requires a single hot press run.
Crafted with premium materials subjected to refined heat treatments (quenching & tempering) to enhance hardness, toughness, and operational life.
Key wearing parts like the squeeze loop, spiral, and bar are designed to be dismountable. Easily replace individual wear components rather than the whole machine.

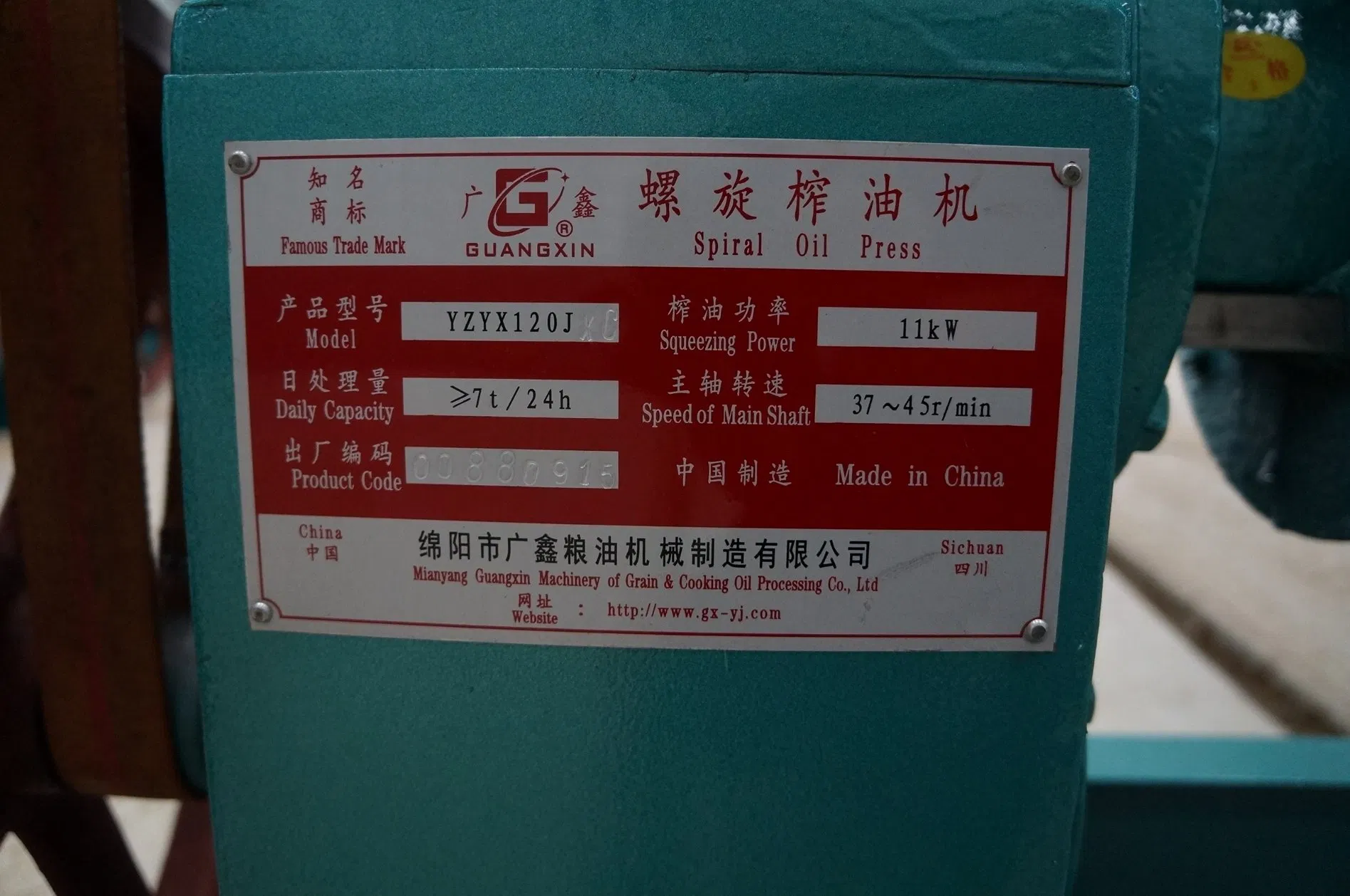

| Technical Specification Parameter | Value / Standard Details |
|---|---|
| Processing capacity (t/24h) | 7.0 |
| Oil content of dry cakes (%) | ≤6 |
| Power required (KW) | 11 or 15 |
| Measurement (mm) | 2110×780×1350 |
| Spiral axes rotate speed (r/min) | 37-45 |
| Weight (KG) | 718 |

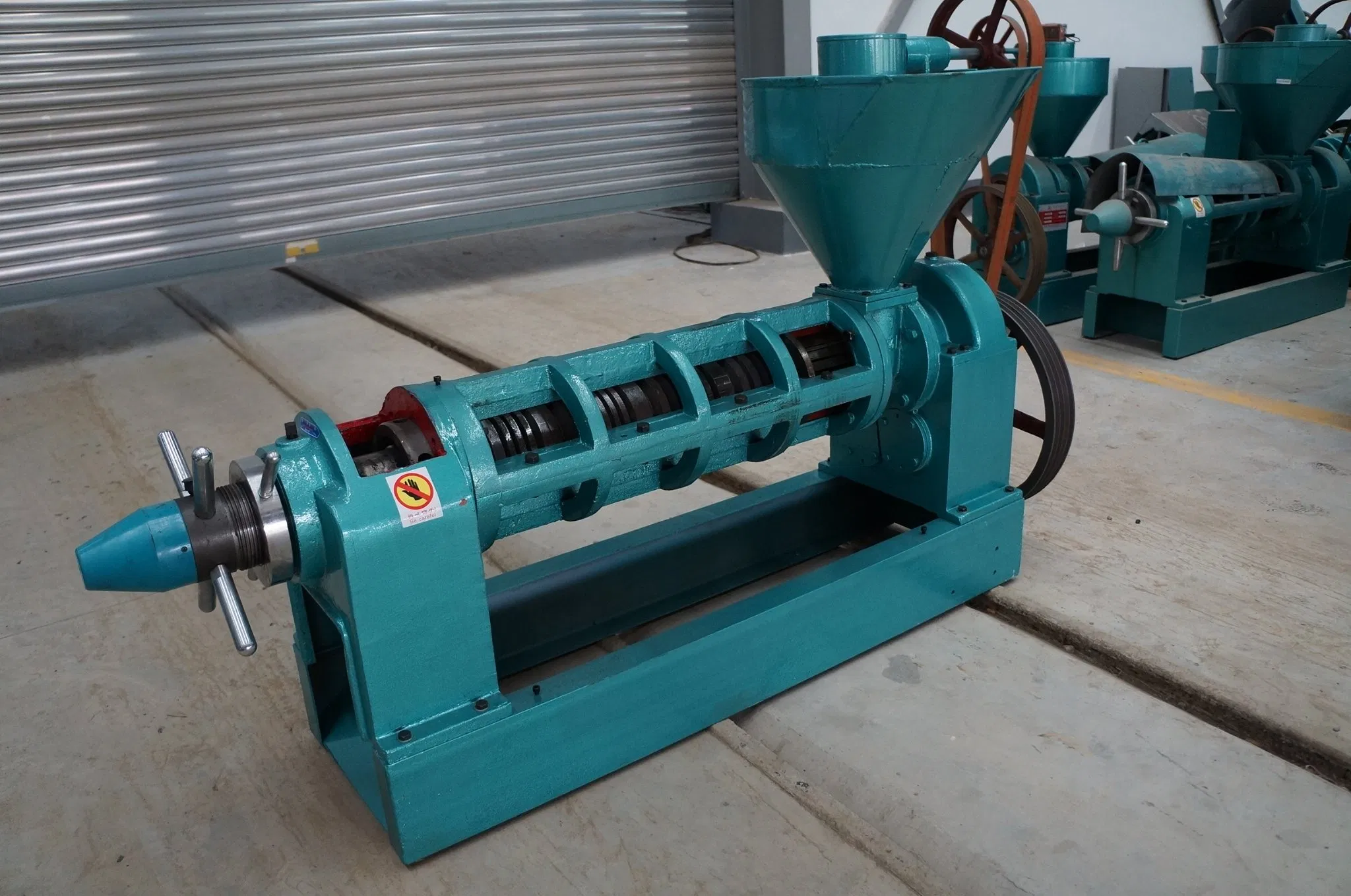

This oil press is highly versatile and suitable for rapeseeds, cotton seeds, soybeans, shelled peanuts, flax seeds, sunflower seeds, palm kernels, and many other oil-bearing materials.
The oil content remaining in the dry cakes is kept at or below 6% (≤6%), ensuring maximum oil extraction efficiency in a single processing run.
Physical cold/hot pressing preserves the maximum amount of nutrients, including proteins, healthy fatty acids, and essential minerals, without leaving any chemical solvent residues in the final product.

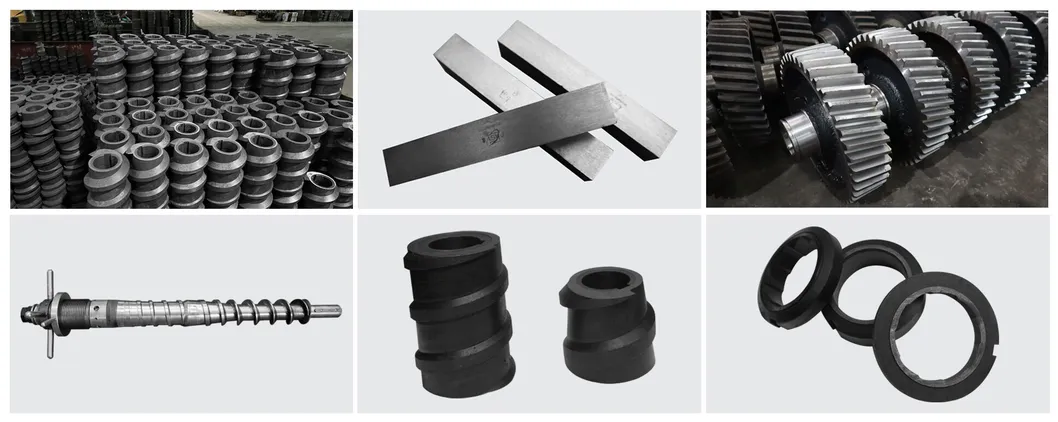

We design wearing parts (squeeze loop, spiral, and bar) to be easily dismountable. We provide replacement spare parts all year round so you can replace only the worn parts instead of buying a whole new machine.
We offer a 12-month warranty from the date of purchase. We provide a free replacement of the main machine body if any quality issues arise from the manufacturing process during this timeframe.
The squeezing cage length of the YZYX120J is extended by 22cm compared to the standard model, resulting in a higher daily processing capacity and lower residue oil content.
