| Model NO. | zx85 oil extractor |
| Structure | Horizontal |
| Press Series | Third |
| Voltage | 380V |
| Plant Name | Zx85 Small Coconut Oil Press Machine |
| Raw Material | Coconut, Peanut, Sunflower Seeds |
| Raw Material 2 | Sesame, Mango Seeds, Cocoa Butter, Mustard |
| Capacity | 60-80kg/H for Input |
| Main Power | 380V/50Hz/5.5kw |
| Oil Output Rate | Peanut 40-48%, Soybean 12%, Sunflower Seeds 40% |
| Oil Output Rate 2 | Sunflower Seeds Kernel 58%, White Sesame 50% |
| Oil Residue Rate in Cake | 7-8% |
| Accessory Machines | Cleaning, Roaster, Filter, Refinery, Filling |
| Spare Parts | Worms, Rings, Bars, Cake Guide Ring, Cake Outlet |

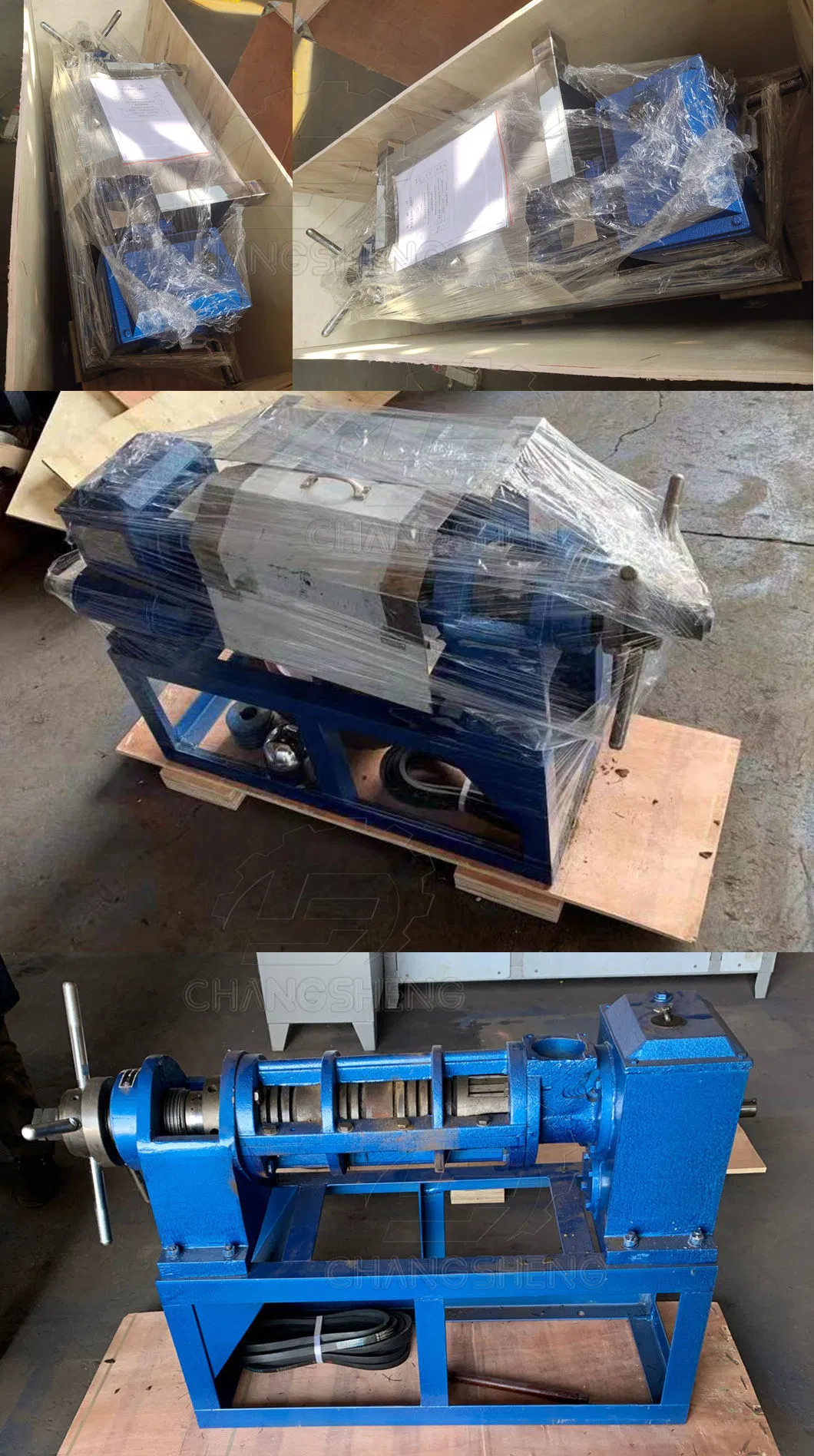

| Transport Package | Wooden Package |
| Specification | 1.2*0.4*0.9m |
| Origin | Made in China |
| Production Capacity | 500sets Per Month |
| Package Size | 120.00cm * 40.00cm * 90.00cm |
| Package Gross Weight | 200.000kg |

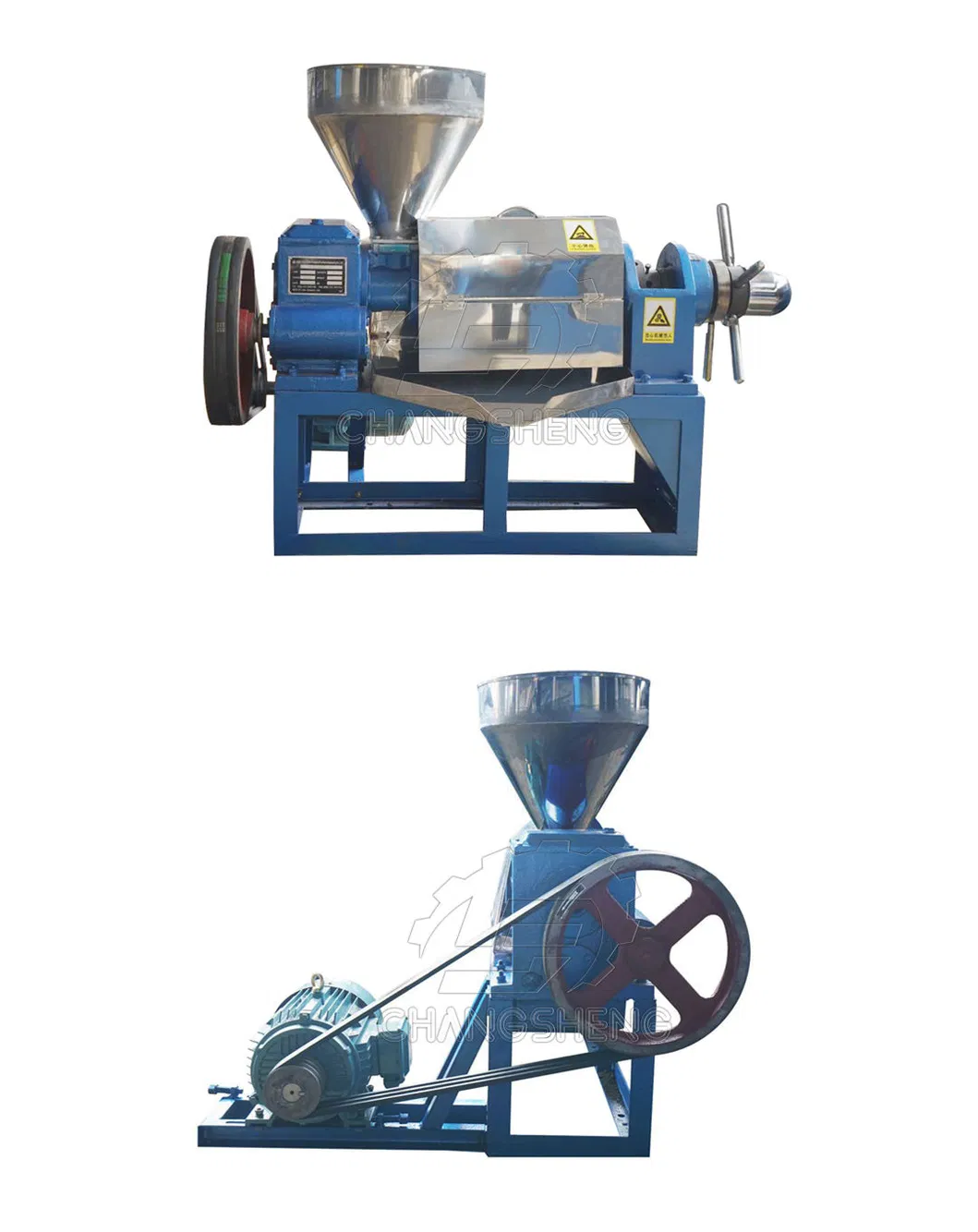

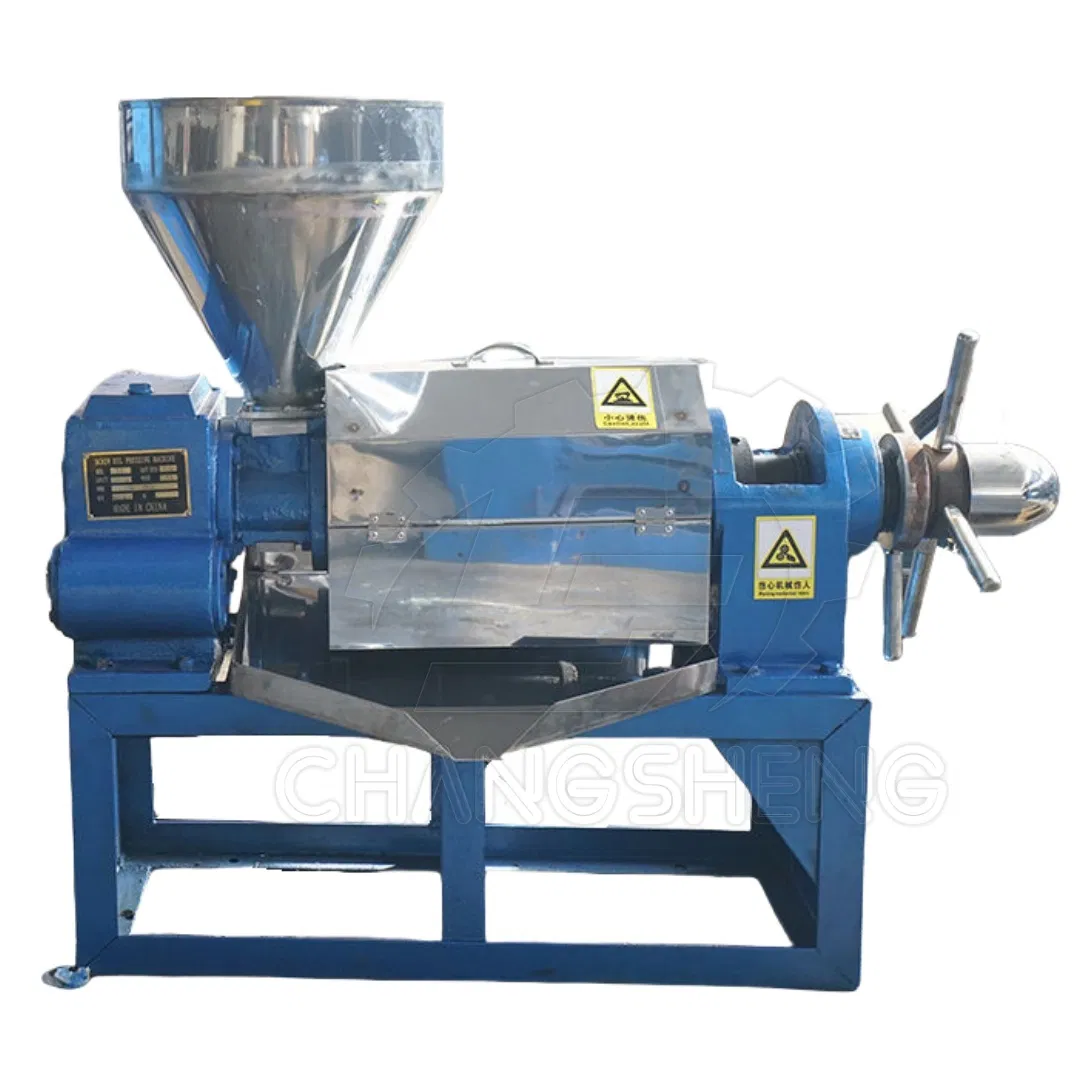

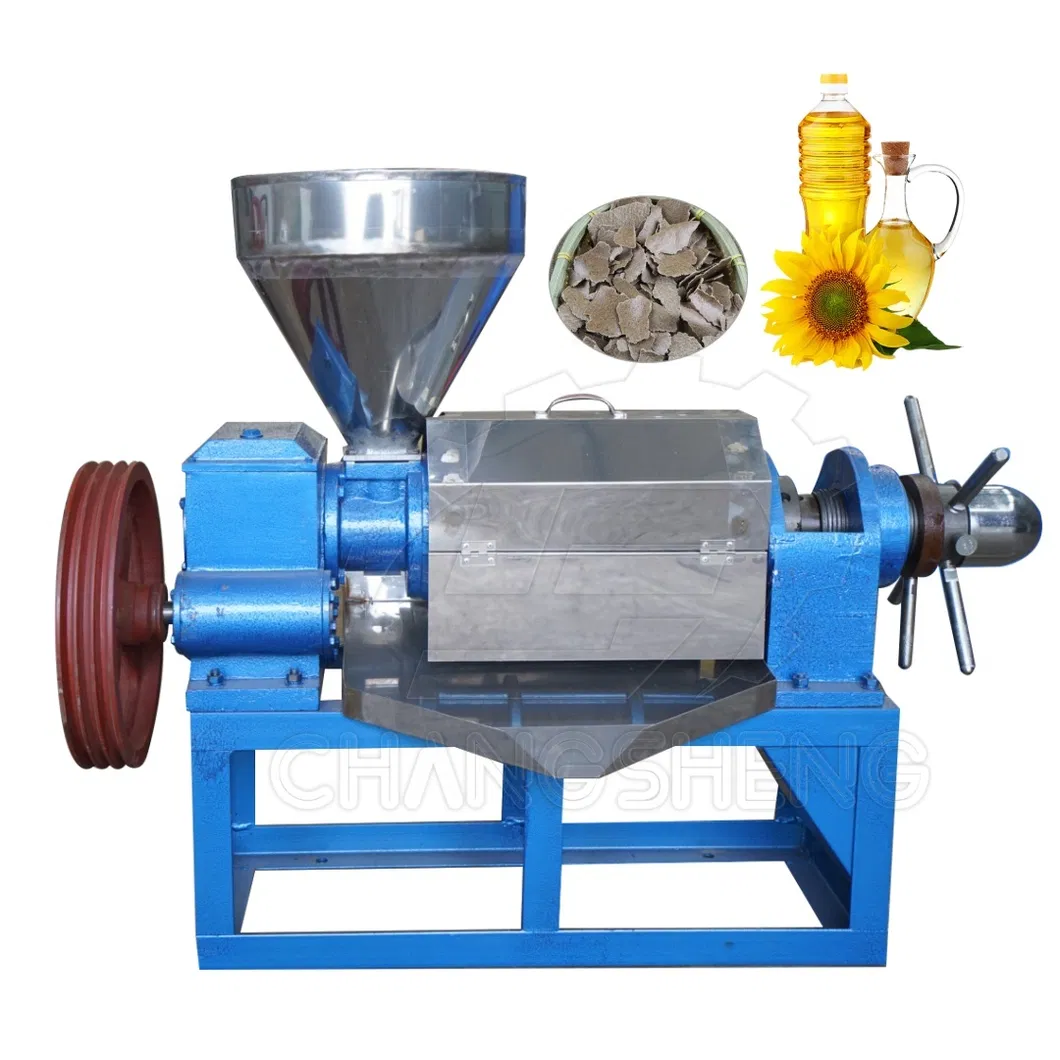

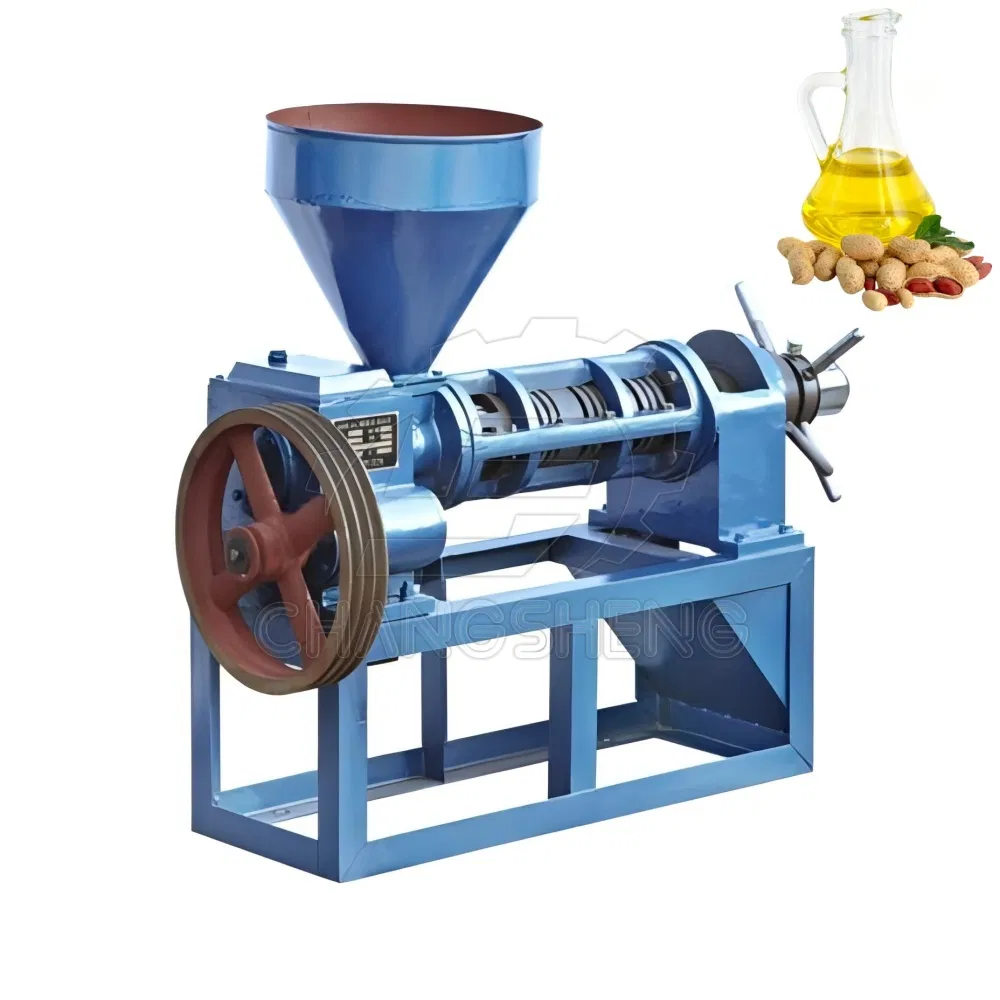

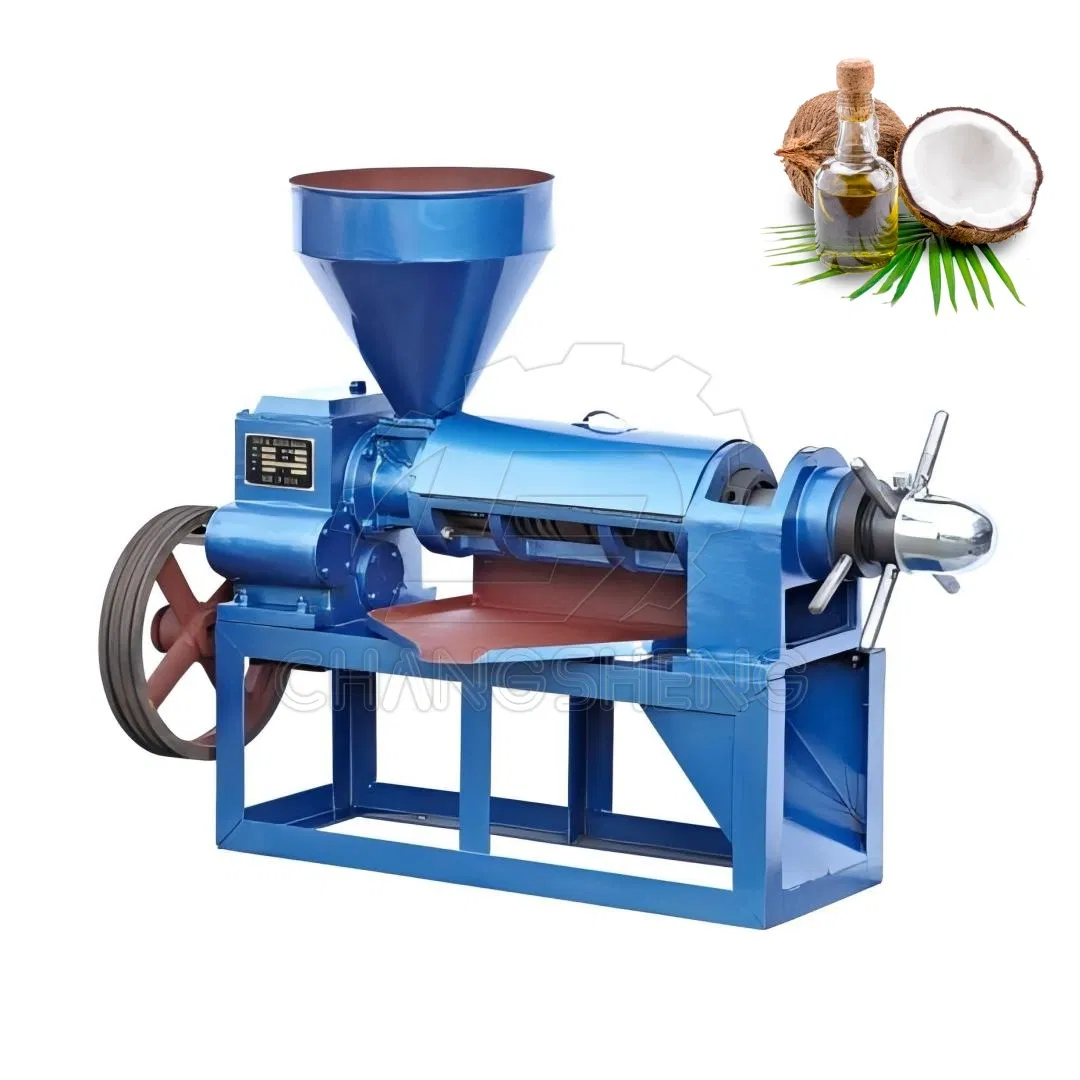

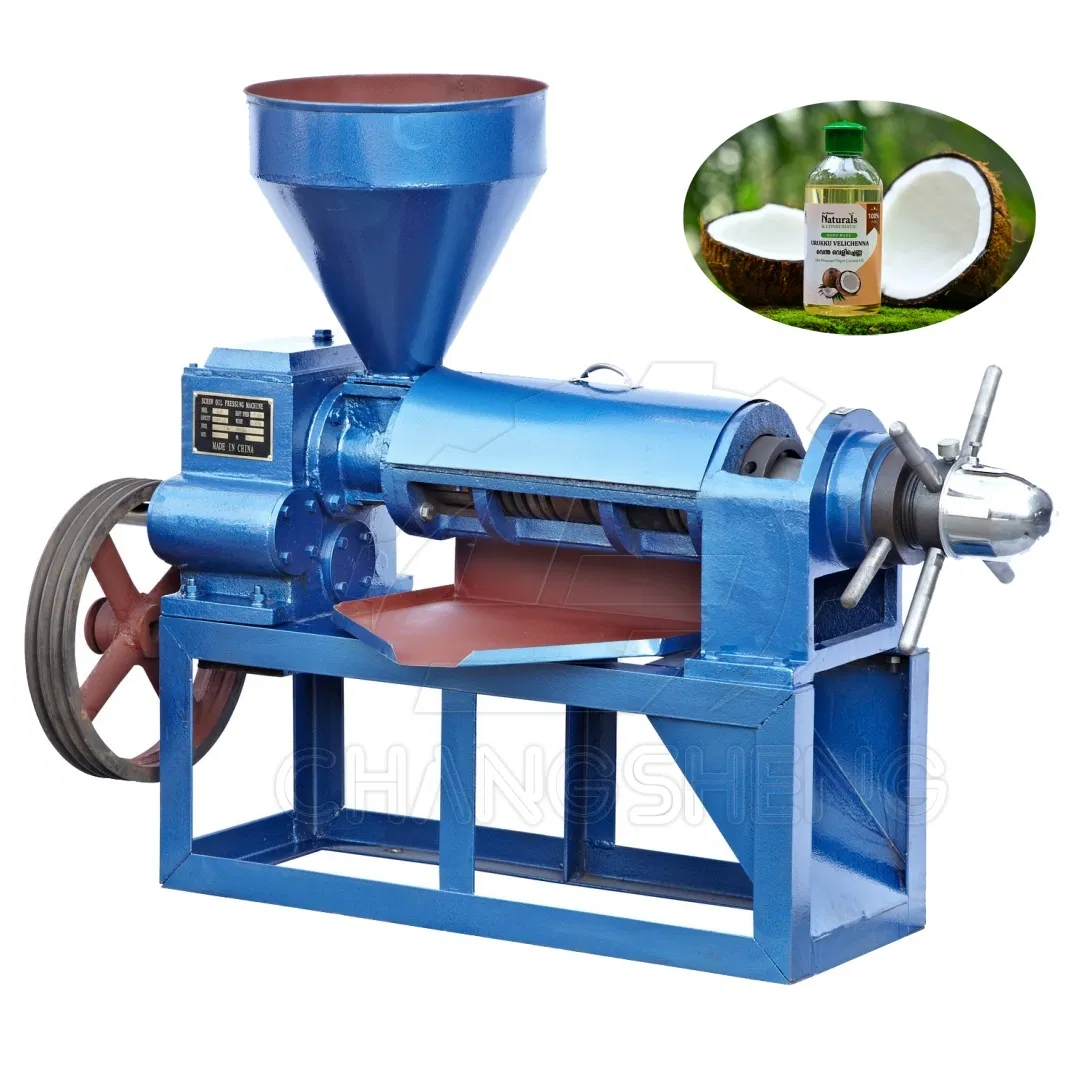

ZX85 Screw Press Canola Copra Groundnut Oil Mill Oil Extraction Machine
Introduction
Introducing our patented ZX-85 Small coconut oil press machine: a state-of-the-art innovation. This advanced oil processing marvel features a straightforward design that ensures effortless operation. Benefit from its low consumption and minimal noise, complemented by an impressive high output rate. Its high adaptability allows for the processing of a multitude of plant oil materials such as peanut, soybean, rapeseed, cottonseed, sesame, olive, sunflower, coconut, and cocoa. Ideal for medium to small-scale oil factories and individual users, this machine also excels in the pre-pressing stage of extraction oil factories.
Working Principle
A screw oil press works by using a rotating screw shaft to mechanically squeeze oil out of seeds as they are fed into a pressing chamber. The screw's gradually decreasing pitch and increasing root diameter reduce the available volume, creating high pressure and friction that forces the oil through the chamber's gaps. The friction also generates heat, which denatures proteins and reduces oil viscosity, further aiding oil extraction and improving yield.
Structure of Soybean Oil Presses
The machine is meticulously crafted from five key components: the hopper, gearbox, press case, pressing screw, and the robust machine body.

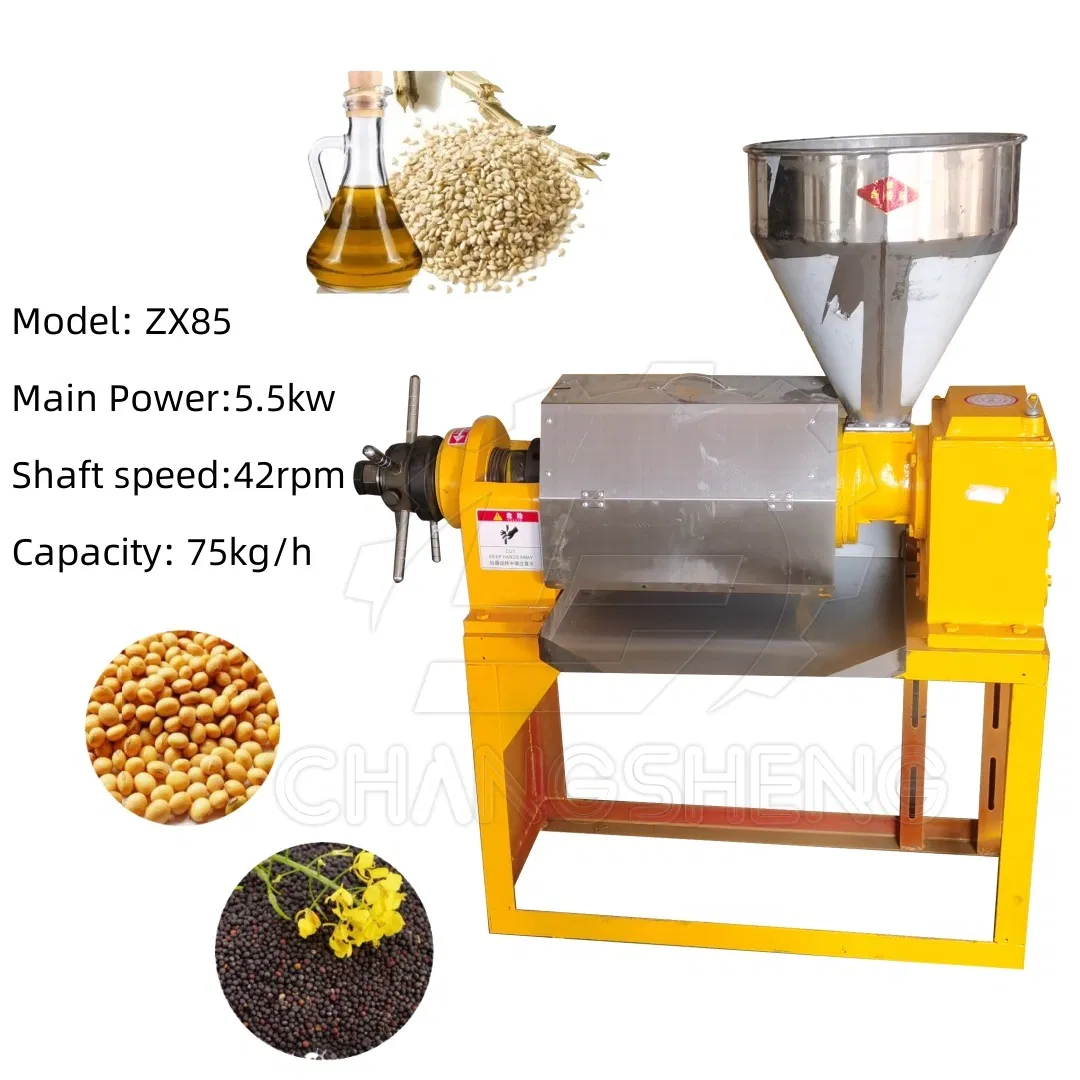

Technical Parameter of Oil Press
| Model | ZX85 |
|---|---|
| Capacity | 60-80kg/h |
| Main Power | 5.5kw-4 |
| Size | 1.2*0.4*0.9m |
| Weight | 200kg |
Different Oil Seeds Details
| No. | Item | Oil Content | Oil Yield | Note |
|---|---|---|---|---|
| 1 | rapeseed/mustard seed | 37-46% | 30-42% | hot press |
| 2 | peanut/groundnut | 44-50% | 40-46% | hot press |
| 3 | Northeast China soybean | 15% | 12% | cold press |
| 4 | genetically modified soybean | 25% | 18% | cold press |
| 5 | sunflower seeds | 50% | 40% | hot press |
| 6 | sunflower seeds kernel | 50-65% | 58% | hot press |
| 7 | white sesame | 55% | 50% | hot press |
| 8 | black sesame | 47% | 44% | hot press |
| 9 | Tea seeds | 30% | 28% | hot press |
| 10 | Cottonseeds | 13% | 11% | cold press |
| 11 | flaxseed/lineseed | 56% | 50% | hot press |
| 12 | copra | 57-75% | 50-65% | hot press |
| 13 | hazelnut | 60% | 56% | hot press |
| 14 | corn germ | 30% | 22-26% | hot press |
Q1: What is the input processing capacity of the ZX85 oil press machine?
A1: The ZX85 oil press machine has an input capacity of 60 to 80 kg per hour, making it highly suitable for small to medium-scale oil processing setups and individual users.
Q2: Which raw materials are compatible with this extraction machine?
A2: The machine is highly adaptable and can process a wide variety of oil-rich seeds and materials, including coconut (copra), peanut (groundnut), sunflower seeds, rapeseed (mustard), soybean, sesame, cottonseed, olive, and cocoa butter.
Q3: What are the main components that make up the structure of the machine?
A3: The ZX85 is meticulously constructed from five main parts: the feed hopper, the gearbox, the press case, the pressing screw shaft, and the robust structural machine body.
Q4: Does the ZX85 support both hot and cold pressing processes?
A4: Yes. It supports hot pressing for seeds like rapeseed, peanut, sesame, and sunflower. It is also designed to run cold pressing operations for materials such as Northeast China soybeans and cottonseeds.
Q5: What is the typical oil residue rate left in the cake after extraction?
A5: The machine features an efficient pressing mechanism that ensures a low oil residue rate in the cake, keeping it optimized at around 7% to 8%.
Q6: What accessory machines can be matched with this unit for a complete line?

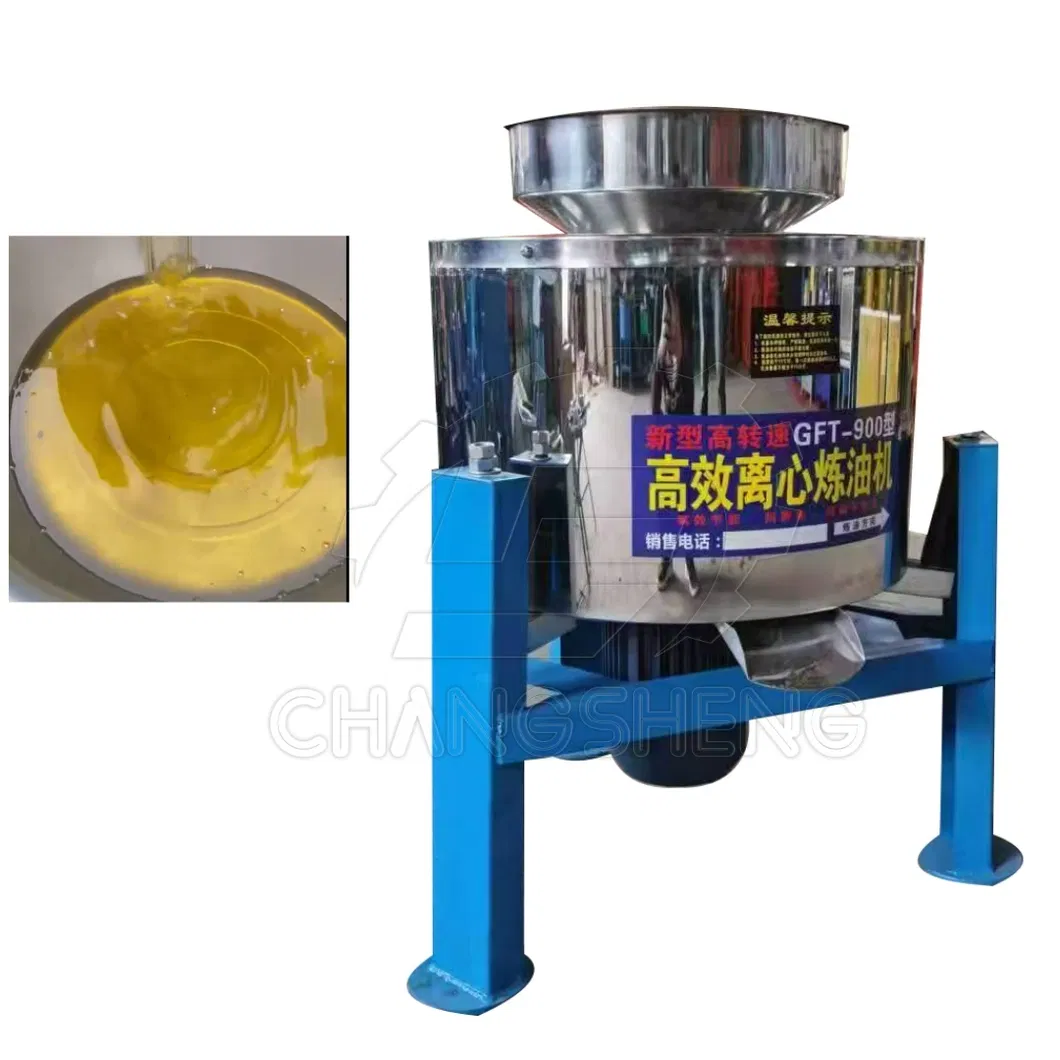

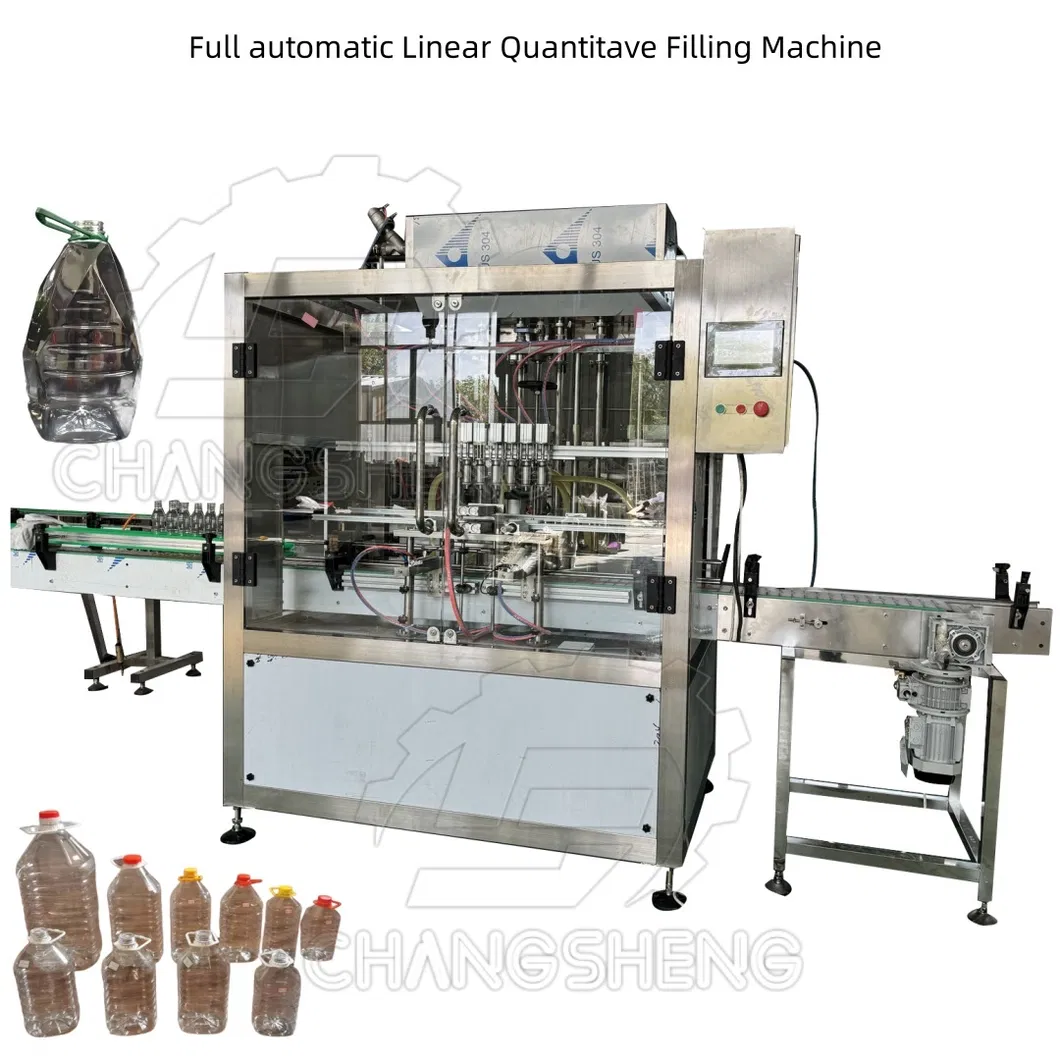

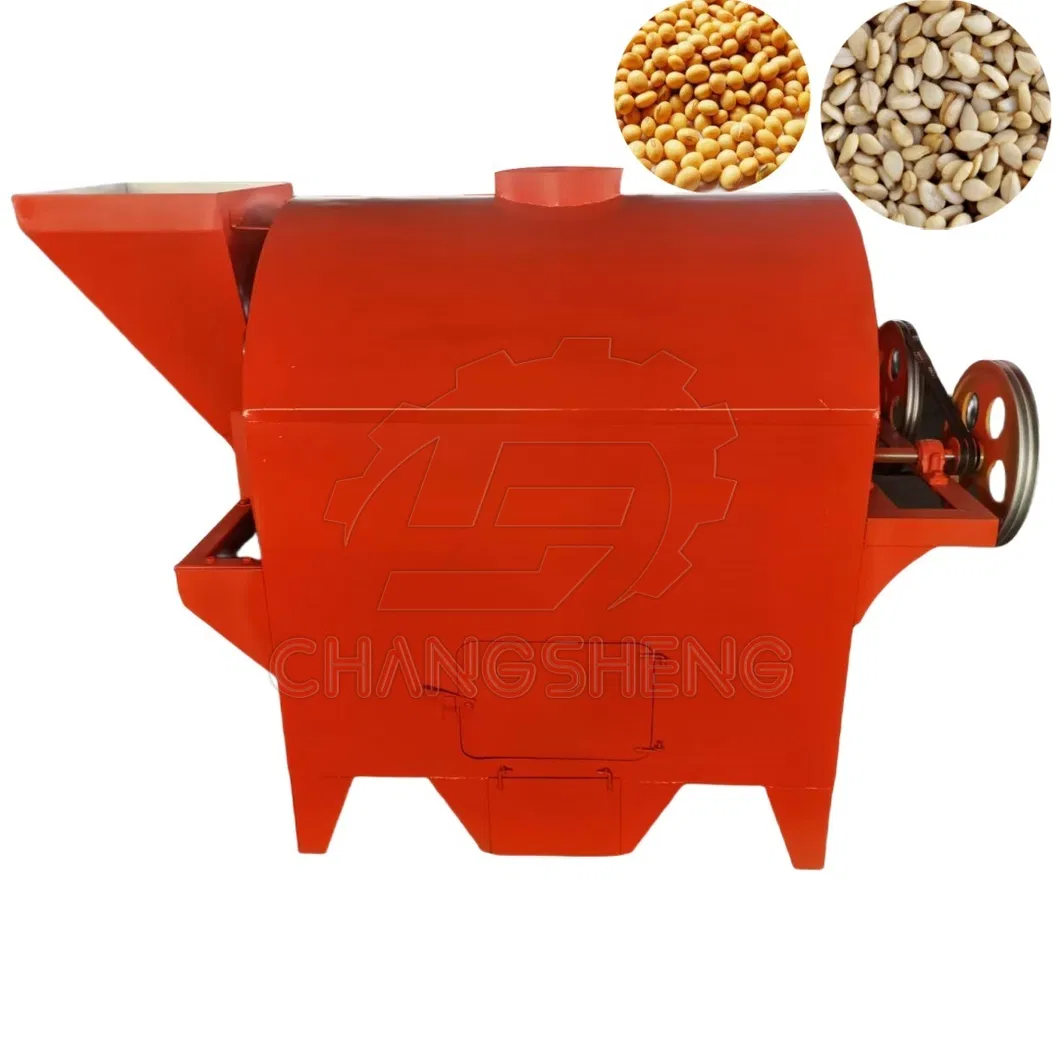

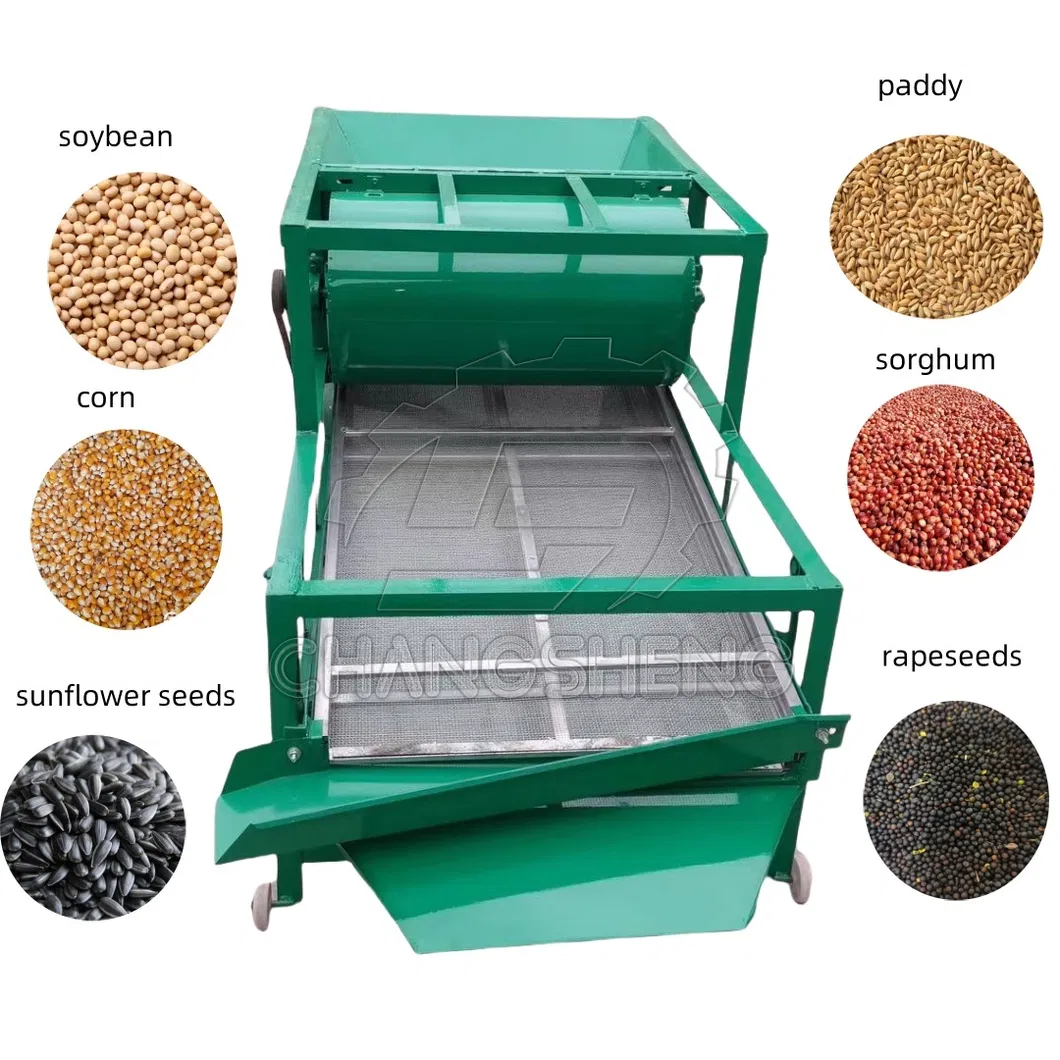

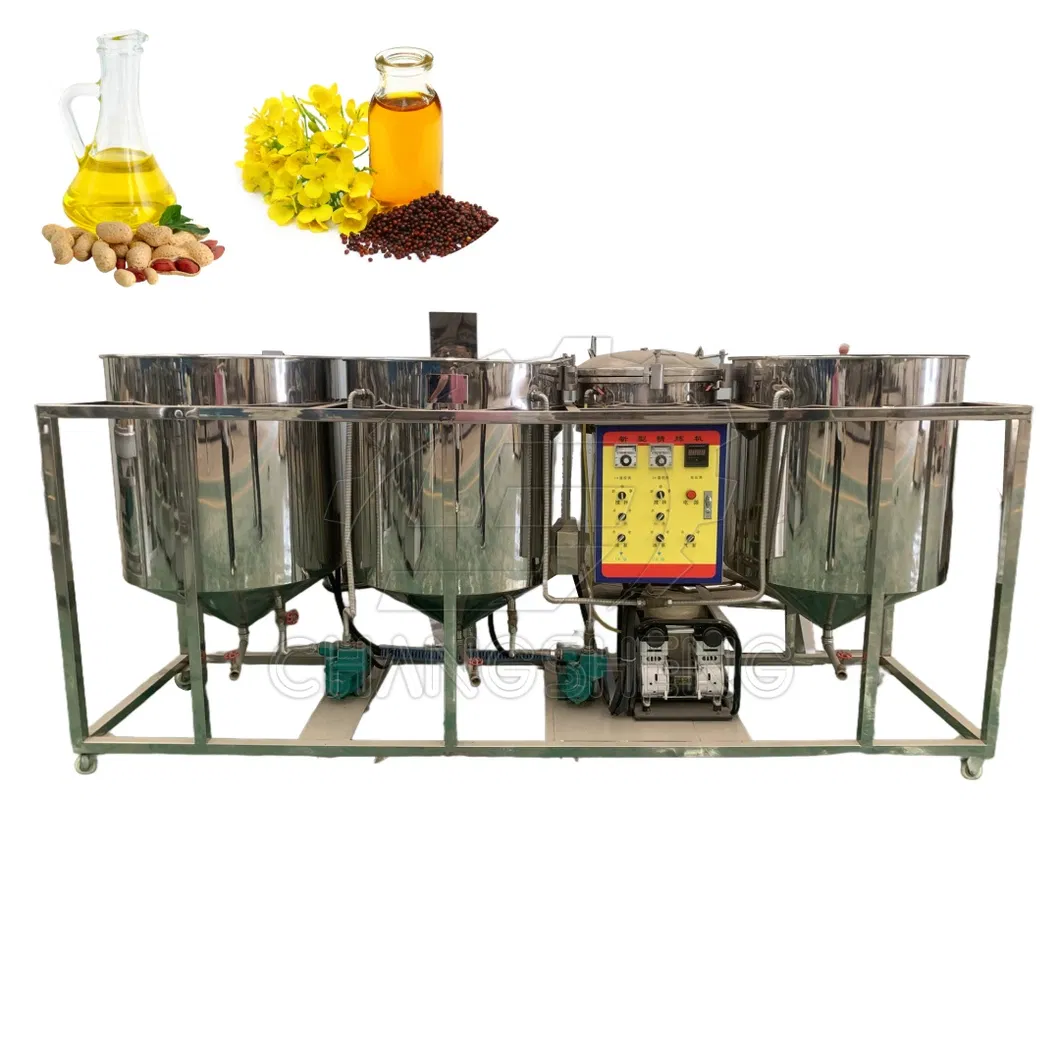

A6: For a fully integrated oil mill processing line, you can match this machine with a seed cleaner machine, seed roaster machine, oil filter machine, small electrical refinery machine, and filling equipment.
